ESCORTS Loadmax II

0(0 Reviews)

ESCORTS Loadmax II is available in the India market with an ex-showroom price of . ESCORTS Loadmax II comes with 340 NM.

Price coming soon^*

View Price Breakup

EMI starts @

*****/month*

Ex-showroom price in

EMI starts @

*****/month*

Loadmax II
Price
Variants
Images
Specs
Reviews
Q&A
Videos
EMI
Brochure

ESCORTS Loadmax II Construction Equipments Specs & Features

340 NM
Maximum Torque

ESCORTS Loadmax II Construction Equipments Overview

ESCORTS Loadmax II Construction Equipments Engine

ESCORTS Loadmax II is powered by 340 NM

ESCORTS Loadmax II Latest Price in India 2025

ESCORTS Loadmax II is available in India starting from 0

ESCORTS Loadmax II Alternatives & Competitors

Main rival Construction Equipments of ESCORTS Loadmax II are ACE AX-130, JCB 3DX, BOBCAT B900, BULL CH76 Challenger, BULL HD 100 and CAT 424

Keep reading to explore more about ESCORTS Loadmax II's updated specs, latest prices, horsepower, genuine user reviews, exclusive images, best offers near you, Construction Equipments dealers.

ESCORTS Loadmax II Variant	Price Range
Base

Base
- 340 NM
Price Coming Soon ^*
View Price Breakup

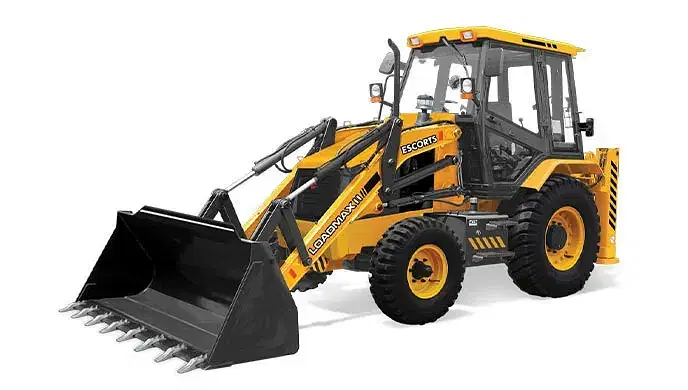

ESCORTS Loadmax II Images

ESCORTS Loadmax II

ESCORTS Loadmax II Specifications

Engine
Loader General Dimension
Backhoe Loader Dimension
Overall Dimension & Weight
Hydraulic system
Service Capacities
Axle
Steering
Brakes
Tyre
Power Train
General

Engine

ModelE4.346CR

CompliantBS-IV

Air Intake TypeTurbocharged Intercooled

Gross Power74.5 hp

Maximum Torque340 NM

Loader General Dimension

Dump Height3000 MM

Load Over Height3510 MM

Hinge Pin Height3700 MM

Hinge Pin Forward Reach400

Reach At Ground1540

Max Reach At Full Height Bucket Dumped1190

Below Ground Level Dig Depth130

Rollback At Ground45 deg

Dump Angle45 Deg

Bucket Capacity Std1.2

Bucket Breakout Force6425 Kgf

Loader Arm Breakout Force5777 Kgf

Max Pay Load1980 kg

Backhoe Loader Dimension

Max Load Over Height3510

Max Lift Capacity3045

Overall Dimension & Weight

Max Operating Weight8600

Transport Length6810

Width Over Bucket2380 MM

Track Width Rear1750 MM

Track Width Front1870 MM

Wheelbase2140 MM

Minimum Ground Clearance390

Height To Top Of Cabin2880

Hydraulic system

Pump TypeTandem Gear Pump

Pump Flow116 Ipm

Relief Pressure225 bar

Service Capacities

Rear Axle17.1 Ltr.

Fuel Tank134 litres

Coolant15 Ltr.

Hydraulic Oil80

Transmission Oil Capacity16.5 Ltr

Axle

RearRear drive axle, rigidly mounted to chassis

FrontFront Steer Axle (2WD), Front Drive & Steer Axle (4WD)

Front Oscillation±16 (2WD), ±12 (4WD)

Steering

TypeHydrostatic Power Steering

Pressure120 Bar

Brakes

ServiceHydraulically actuated dual line, self adjusting, oil immersed, multi disc type on rear axle

ParkingHand-operated caliper disc brakes

Tyre

Hd Rear Optional14x25-20PR

Standard Front9.00 x 16 - 16PR (2WD), 12.50/80x18 -12PR (4WD)

Standard Rear16.9 x 28 - 12PR

Power Train

Transmission Make And ModelSyncro shift reversing shuttle transmission

General

CategoryBackhoe Loader

Forward5.3/8.5/18.5/36.6

Reverse4.6/7.0/ Not recommended
