ACE AX-124 NS
  • +2 Images

ACE AX-124 NS

0(0 Reviews)

ACE AX-124 NS is available in the India market with an ex-showroom price of ₹31.00 Lakh. ACE AX-124 NS comes with 400 Nm,0.24.

₹31.00 Lakh*

View Price Breakup

EMI starts @

₹57,916/Month*

Ex-showroom price in

ACE AX-124 NS

EMI starts @

₹57,916/Month*

  • AX-124 NS
  • Price
  • Variants
  • Images
  • Specs
  • Reviews
  • Q&A
  • Videos
  • EMI
  • Brochure

ACE AX-124 NS Construction Equipments Specs & Features

  • 400 Nm
    Maximum Torque
  • 0.24
    Bucket Capacity

ACE AX-124 NS Latest Update

The ACE AX-124-NS is a backhoe loader from Action Construction Equipment Ltd., designed to cater to the demanding needs of construction and agricultural sectors. It integrates advanced features with robust performance to ensure efficiency and reliability in various tasks

Read More

ACE AX-124 NS Construction Equipments Overview

ACE AX-124 NS Construction Equipments Engine

ACE AX-124 NS is powered by 400 Nm and 0.24

ACE AX-124 NS Latest Price in India 2025

ACE AX-124 NS is available in India starting from ₹31.00 Lakh

ACE AX-124 NS Alternatives & Competitors

Main rival Construction Equipments of ACE AX-124 NS are Toyota RRE120B, Tata Hitachi EX 110 SUPER, JCB 100C1, Schwing Stetter XS115H Compactor, Schwing Stetter XCT25L4 Y Crane and Schwing Stetter GTBZ18A1 Boomlift

Keep reading to explore more about ACE AX-124 NS's updated specs, latest prices, horsepower, genuine user reviews, exclusive images, best offers near you, Construction Equipments dealers.

ACE AX-124 NS Variant Price Range
Base ₹31.00 Lakh

Read More

ACE AX-124 NS Price List Variants

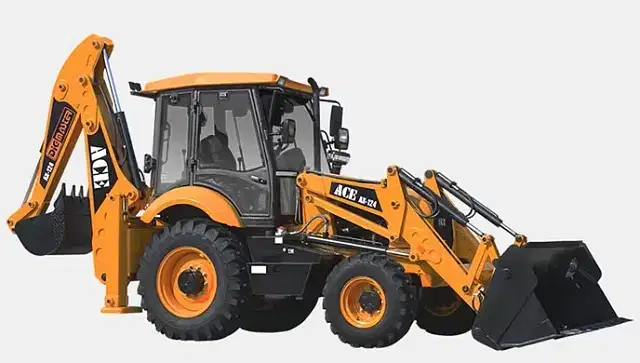

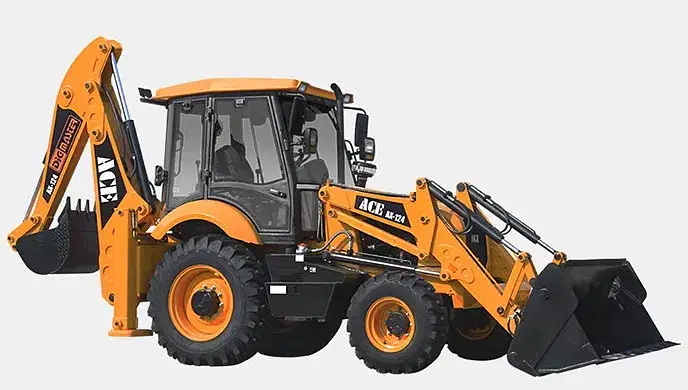

ACE AX-124 NS Images

  • ACE AX-124 NS

    ACE AX-124 NS

  • ACE AX-124 NS

    ACE AX-124 NS

ACE AX-124 NS Specifications

  • Engine
  • Loader General Dimension
  • Backhoe Loader Dimension
  • Overall Dimension & Weight
  • Hydraulic system
  • Service Capacities
  • Axle
  • Steering
  • Brakes
  • Tyre
  • Electrical System
  • General
Engine
ModelKIRLOSKAR make (Bs III)
CompliantCEV BS-IV
Gross Power74 hp
Maximum Torque400 Nm
Loader General Dimension
Dump Height890
Load Over Height3300 MM
Max Reach At Full Height Bucket Dumped1220
Dump Angle45 Deg
Bucket Capacity Std1 Cum
Max Pay Load1900 kg
Backhoe Loader Dimension
Max Dig Depth4250 MM
Max Working Height5470 MM
Bucket Capacity0.24
Bucket Capacity Backhoe0.2
Bucket Rotation185 deg
Max Lift Capacity1900
Overall Dimension & Weight
Max Operating Weight7500
Width Over Bucket2380 MM
Track Width Rear1600 MM
Track Width Front1840 MM
Wheelbase2220 MM
Minimum Ground Clearance300
Hydraulic system
Pump Flow118 IPM
Relief Pressure210 Bar
Service Capacities
Engine Oil11 L
Rear AxleFront: Drive (In case of 4 WD and Steer Axle), Rear: Rigid axle with Carraro planetary drive.
Fuel Tank150 ltrs
Hydraulic Oil80
Transmission Oil Capacity17 Ltr
Axle
RearRigid axle with CARRARO planetary drive
FrontDrive & Steer Axle, centrally pivoted
Steering
TypeHydrostatic steering for reliability and better control
Brakes
ServiceHydraulically actuated wet disc brakes at rear wheels with twin pedals in cabin for better control
ParkingMechanically actuated disc brakes for parking
Tyre
Standard Front9.00 - 16-16 PR
Standard Rear16.90 - 28 - 12 PR
Electrical System
Battery12 V
General
CategoryBackhoe Loader

Compare ACE AX-124 NS with Competitors

ACE AX-124 NS User Reviews

ACE AX-124 NS User Review

Be The First to Rate

      Have a question in your mind about ACE AX-124 NS ?

      Get your answer from expert and users

      QNA
      • What is the price range of the ACE AX-124-NS?
        • The ACE AX-124-NS is priced between ₹23 lakh and ₹31 lakh in India.
          GS

          Gaurav Sharma

          03 Jul 2024

      Pros & Cons of ACE AX-124 NS

      Features we admire in ACE AX-124 NS

      • The AX-124-NS is noted for its large fuel tank and efficient engine, which reduce the need for frequent refueling and lower overall fuel costs.
      • The powerful engine and strong hydraulic system enable it to handle tough jobs effectively.
      • Designed with a comfortable seat and excellent visibility, enhancing safety and efficiency.

      ACE AX-124 NS EMI Calculator

      EMI ₹57,916 per month

      Loan Amount

      Interest Amount

      0

      ₹31,00,000

      7%

      18%

      Time Period (in years)

      1 year

      7 year

      ₹27,90,000

      ₹6,84,949

      ₹34,74,949

      EMI starting at

      ₹57,916 /month*

      ACE AX-124 NS Brochure

      Download ACE AX-124 NS Brochure to check more details.
