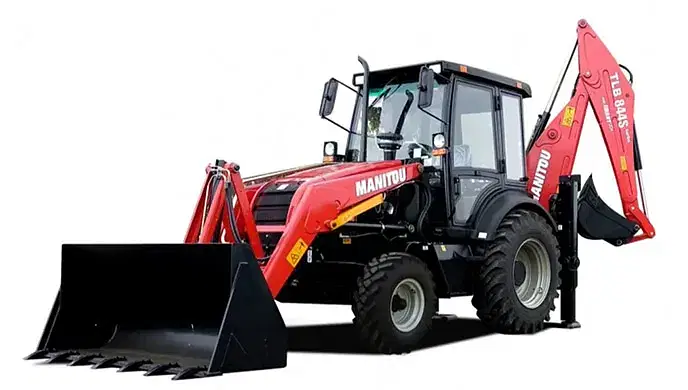

Manitou TLB 844S 4WD
  • +2 Images

Manitou TLB 844S 4WD

0(0 Reviews)

Manitou TLB 844S 4WD is available in the India market with an ex-showroom price of . Manitou TLB 844S 4WD comes with 4.16,350 NM,0.24.

Price coming soon*

View Price Breakup

EMI starts @

*****/month*

Ex-showroom price in

Manitou TLB 844S 4WD

EMI starts @

*****/month*

  • TLB 844S 4WD
  • Price
  • Variants
  • Images
  • Specs
  • Reviews
  • Q&A
  • Videos
  • EMI
  • Brochure

Manitou TLB 844S 4WD Construction Equipments Features

  • 4.16
    Displacement
  • 350 NM
    Maximum Torque
  • 0.24
    Bucket Capacity

Manitou TLB 844S 4WD Construction Equipments Overview

Manitou TLB 844S 4WD Construction Equipments Engine

Manitou TLB 844S 4WD is powered by 4.16 , 350 NM and 0.24

Manitou TLB 844S 4WD Latest Price in India 2025

Manitou TLB 844S 4WD is available in India starting from 0

Manitou TLB 844S 4WD Alternatives & Competitors

Main rival Construction Equipments of Manitou TLB 844S 4WD are JCB 3DX, JCB 4DX, ACE AX-124, ACE AX-124 4WD, BOBCAT B900 and BULL HD 100

Keep reading to explore more about Manitou TLB 844S 4WD's updated specs, latest prices, horsepower, genuine user reviews, exclusive images, best offers near you, Construction Equipments dealers.

Manitou TLB 844S 4WD Variant Price Range
Base

Read More

Manitou TLB 844S 4WD Price List Variants

Manitou TLB 844S 4WD Images

  • Manitou TLB 844S 4WD

    Manitou TLB 844S 4WD

  • Manitou TLB 844S 4WD

    Manitou TLB 844S 4WD

Manitou TLB 844S 4WD Specifications

  • Engine
  • Loader General Dimension
  • Backhoe Loader Dimension
  • Overall Dimension & Weight
  • Hydraulic system
  • Service Capacities
  • Steering
  • Brakes
  • Tyre
  • Electrical System
  • General
Engine
ModelKirloskar 4R1040TA
CompliantBS-III
Displacement4.16
Gross Power90 hp @ 2200 rpm
Maximum Torque350 NM
Loader General Dimension
Dump Height2708 mm
Load Over Height3310 MM
Hinge Pin Height3550 mm
Max Reach At Full Height Bucket Dumped1996
Below Ground Level Dig Depth156 mm
Rollback At Ground45 deg
Dump Angle57 Deg
Bucket Capacity Std1 Cum
Bucket Breakout Force4756 kgf
Loader Arm Breakout Force4685 kgf
Maximum Lifting Capacity3465
Backhoe Loader Dimension
Max Dig Depth4741mm
Reach At Full Height To Slew Center5730
Bucket Capacity0.24
Bucket Capacity Backhoe0.2
Dipper Tear Out Force3946 kgf
Max Lift Capacity3465 Kg
Overall Dimension & Weight
Max Operating Weight7600
Transport Length7338 mm
Width Over Bucket2330 MM
Wheelbase2130 mm
Minimum Ground Clearance400 MM
Height To Top Of Cabin2770 mm
Overall Transport Height3762
Hydraulic system
Pump Flow145 LPM (81+64) @ 2200 rpm
Relief Pressure3250 PSI (225 bar)
Service Capacities
Engine Oil11 L
Rear Axle17.5 Ltr
Fuel Tank120 Litres
Coolant16 Ltr
Hydraulic Oil90
Transmission Oil Capacity15 Ltr
Steering
TypeReliable hydraulically assisted power steering
Brakes
ServiceSelf-actuating and self-adjusting, high capacity, sealed, wet disc brakes, maintenance free
Tyre
Standard Front9 x 16 - 16PR, 12.5 x 18 - 12 PR
Standard Rear14 x 25 - 20 PR, 16.9 x 28 - 12 PR
Electrical System
Battery12V and 65A
General
CategoryBackhoe Loader
Forward5.4, 8.6, 19.9, 40 km/hr
