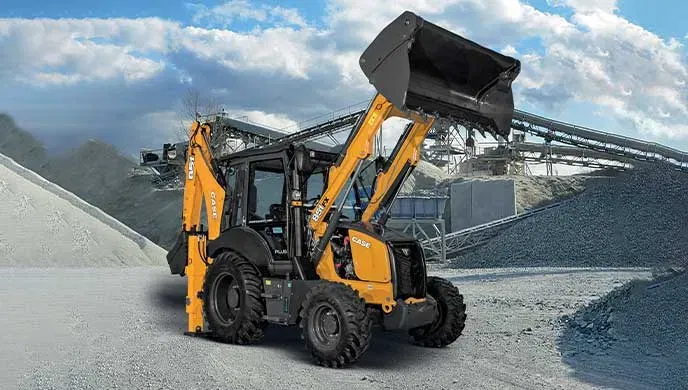

CASE 851 FX Plus

0(0 Reviews)

CASE 851 FX Plus is available in the India market with an ex-showroom price of . CASE 851 FX Plus comes with .

Price coming soon^*

View Price Breakup

EMI starts @

*****/month*

Ex-showroom price in

EMI starts @

*****/month*

851 FX Plus
Price
Variants
Images
Specs
Reviews
Q&A
Videos
EMI
Brochure

CASE 851 FX Plus Latest Update

The CASE 851 FX Plus is a robust backhoe loader designed for heavy-duty construction tasks, offering enhanced performance and operator comfort.

CASE 851 FX Plus Construction Equipments Engine

CASE 851 FX Plus is powered by

CASE 851 FX Plus Latest Price in India 2025

CASE 851 FX Plus is available in India starting from 0

CASE 851 FX Plus Alternatives & Competitors

Main rival Construction Equipments of CASE 851 FX Plus are ACE AX-130, JCB 4DX, ACE AX-124, ACE AX-124 4WD, BOBCAT B900 and BULL HD 100

Keep reading to explore more about CASE 851 FX Plus's updated specs, latest prices, horsepower, genuine user reviews, exclusive images, best offers near you, Construction Equipments dealers.

CASE 851 FX Plus Variant	Price Range
Base

Base
Price Coming Soon ^*
View Price Breakup

CASE 851 FX Plus Images

CASE 851 FX Plus

CASE 851 FX Plus Specifications

Engine
Loader General Dimension
Backhoe Loader Dimension
Overall Dimension & Weight
Hydraulic system
Service Capacities
Axle
Steering
Brakes
Tyre
Electrical System
Power Train
General

Engine

ModelF5BFL413A*W

CompliantCEV Stage IV

Air Intake TypeTurbocharged

Gross Power97 hp

Loader General Dimension

Dump Height2660

Load Over Height3300 MM

Hinge Pin Height3600 MM

Hinge Pin Forward Reach240 MM

Reach At Ground2080 MM

Max Reach At Full Height Bucket Dumped1190

Below Ground Level Dig Depth110 MM

Rollback At Ground33 Deg.

Dump Angle45 Deg

Bucket Capacity Std1.2

Loader Arm Breakout Force4937/48.71 (kgf/kN)

Max Pay Load2050

Maximum Lifting Capacity3700

Backhoe Loader Dimension

Dipper Configuration15 Feet

Max Dig Depth4770 MM

Reach Ground Level To Swing Center5900

Reach Ground Level To Rear Wheel Center7230 MM

Reach At Full Height To Slew Center2340 MM

Max Working Height5700 MM

Max Load Over Height3300 MM

Bucket Capacity Backhoe0.3

Bucket Rotation204 Degree

Bucket Breakout Force5616 Kgf

Dipper Tear Out Force3780 Kgf

Max Lift Capacity1530 Kg

Safe Working Load1100 kg

Overall Dimension & Weight

Max Operating Weight8100

Transport Length6060

Width Over Stabilizer2270 MM

Width Over Bucket2300 MM

Track Width Rear1700 MM

Track Width Front1880 MM (2WD), 1900 MM (4WD)

Minimum Ground Clearance380 MM

Height To Top Of Cabin2830 MM

Overall Transport Height3850

Hydraulic system

Pump TypeVariable Displacement

Pump Flow156 lpm

Relief Pressure210 Bar

Service Capacities

Rear Axle17.1 Ltr.

Hydraulic Oil Replacement107 / 80 /4000 Ltr./Hr

Hydraulic Oil107

Transmission Oil Capacity18 Ltr.

Axle

Front Oscillation±21 Degree(2WD), ±16 Degree(4WD)

Steering

Unit Displacement125 CC

Turning Circle Diameter Outside Bucket9.2

Turning Circle Diameter Outside Bucket Not Braked11.1

Brakes

ServiceWet Multi Discs, 4 Discs

ParkingManual with Lever

Tyre

Hd Rear Optional14.0 x 25 – 20 PR

Standard Front9.0 x 16 – 16 PR

Standard Rear16.9 x 28 – 12 PR

Electrical System

Battery12 V, 110 Ah

Power Train

Transmission Make And ModelCARRARO 2WD/4WD TLB1

Powertrain TypePower Shuttle with TC

General

CategoryBackhoe Loader

Forward6.2/10.0/20.7/39.2

Reverse7.4/12.0/24.8/NR
